Product Details

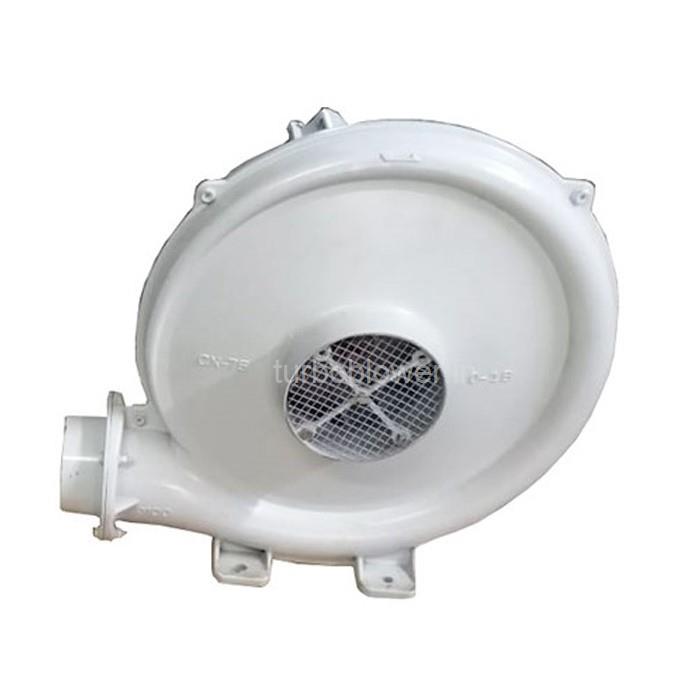

Centrifugal Blower Aluminium Casting type

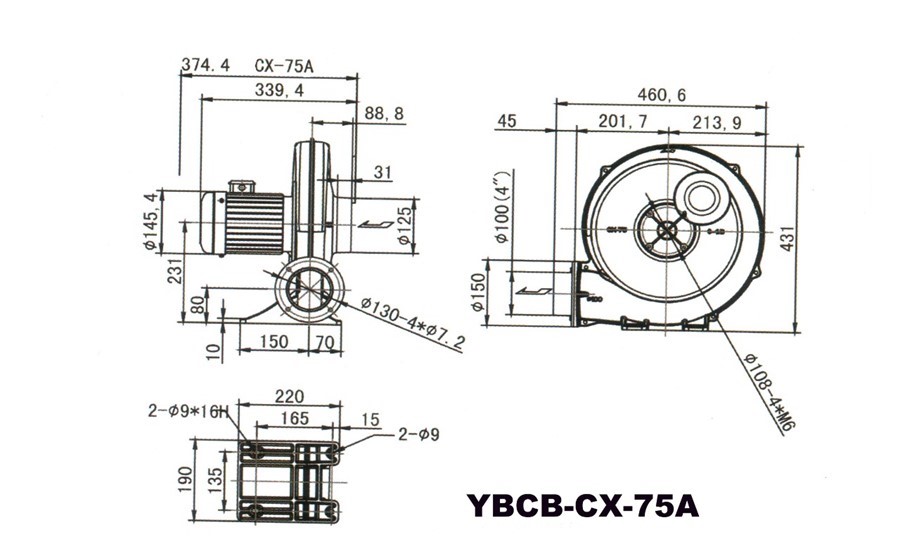

Item : 3 Model : TBM-YBCB-CX-75A
Rated Output : 0.75kw / 1hp (kw) Voltage : 220-240 (V)
Current : 5.7 (A) Voltage : 345-415 (V)
Max Volume : 780-950 m3/hr (M3/min) Noise : 76 Db (Db)
Weight : 14 kg (kg)
SuctionFilter 4"




1. Light weight, medium pressure, big volume, low noise.

2. Aluminum alloy material, greatly reduce weight, achieve the goal of light weight.

3. Design full close outer fan type aluminum frame, motor axis of special design, can be suitable for long time use, high temperature resistance 100°C.

4. Special blade design, unilateral opening without blocking.

5. Special air damper, can adjust the airflow, easy to operate CX applicable.

6. The air inlet and outlet of the fan are designed independently, optional reducing pipe,docking use,the air outlet can choose four directions,the motor can be left or right.


    • Printing Machines
    • Burning Machines
    • Plastic Extruders, Laminating, Film Making Machines
    • Uniform Temperature Equipment
    • Household Machines
    • Dust Collectors
    • Textile Machines
    • Pollution Machines
    • Hot Air Blowers
    • Dryers Machines
    • Incinerators
    • Machinery for the Food and Beverage Industries
    • Machinery for Cooling
    • Woodworking Machines
    • Grain Elevators
